Pull Box for LAN Cable

Pull Box for LAN Cable

Do you really know Pull Box?



What is a good quality cable? Is it just that the raw materials are
genuine and the performance meet the requirements of
international standards? Don't limit to the cable itself, good
packaging also contributes a lot to the quality. As the most
commonly used packaging method for LAN cables, the details
of “Pull Box” may not receive much attention by the customers.
Actually, it contains a Tangle and Twist-Free Packaging
Technology, which by using unique machine programming to
wind the cable into a figure-eight coil with a clear, rhombic
payout hole. While using, the inside end of the cable is unwound
from the inside-out through a payout tube. Unlike other
standard coils or reels, it pays off smoothly without twists,
tangles, snags or overruns. Because the coil does not rotate
during payout, there is no inertia, and thus also no need for
payoff stands or brakes.



Unqualified Pull Box causing a headache

Due to without professional winding machine as well as the
neglect of this technology by many small cable manufacturers,
there are a lot of unqualified Pull Boxes flooding the cable
market. Although this kind of package look almost the same
with the genuine Pull Box from the outside, but inside they are
very different. Since most of winding machines are incapable of
making a clear, precise payout hole in the coil. To form the look
of the Pull Box, the worker has to force a payout tube (usually a
small type) randomly into the coil. This will most likely result in at
least one (or many more) loops in the figure-eight on the wrong
side of the hole, i.e. multiple loops and twists in a row. When
using this package to lay, the installers will often have a
headache due to the knot, tangle problems, what worse, cable
damage caused by the payoff, affecting transmission
performance (especially Return Loss).



SANYUAN Pull Box features

As a professional cable manufacturer, SANYUAN pays special
attention to this Tangle and Twist-Free Packaging Technology,
which has been popularized in UTP cables. The cutting-edge
winding machine and professional engineers ensure that we
can produce the figure-eight coil with a clear payout hole, which
enables us to have the ability to distinguish from most of
unqualified Pull Box on the market, that is, to use larger payout
tube. Excellent cable transmission performance, coupled with
more convenient packaging, will give you the best Telecom
solution while greatly saving your time and transportation
costs, which means fewer returns, and happier customers
experience！

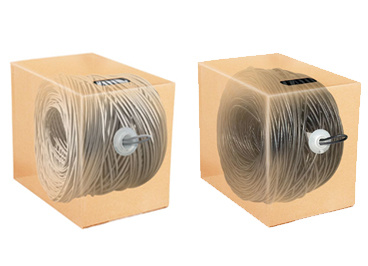

Precision-wound figure-eight coil formed
with clear, distinct payout hole can be
easily equipped with a larger tube which
defined by 38 entry and 50 exit diameters
and thus more suit for cables around 5mm
in diameter.



A 20mm in diameter payout tube is
inserted in the vague, forced or
non-existent hole on this scramble-wound
figure-eight coil causing at some point
during payout, a knot is likely to occur.
